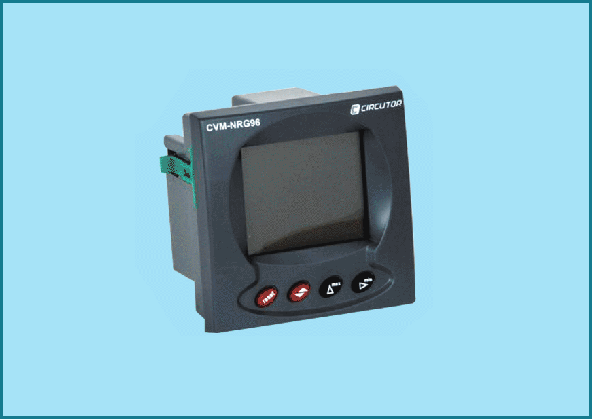

• Panel mounted electrical system analyzer (96 x 96 mm) which measures, calculates and displays the main electrical parameters in balanced and unbalanced three-phase systems
• Slim line analyzer (only 50 mm deep)
• Power demand meter function (A / A III / kW III / kV•A III)
• Current reading using external transformers .../5A (insulated inputs, according to type)
• Option for measuring in Low and Medium Voltage systems
• RS-485 communication (MODBUS RTU)
• Compatible with the Power Studio / Scada system
• 4 line backlit LED display
• Allows selection of default page
• Universal power supply available in "Plus" type & Medium Voltage Systems
• RS-485 communication (MODBUS RTU)

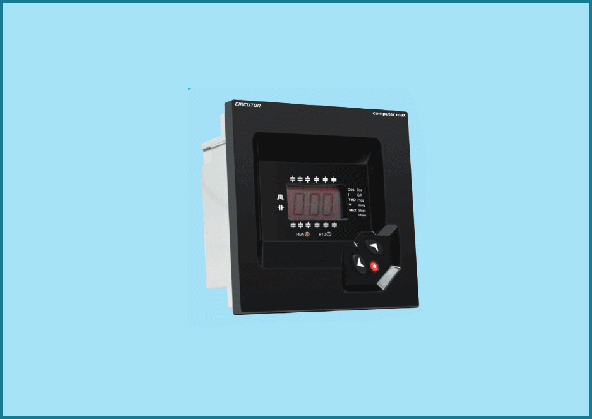

The state-of-the-art regulators of the MAX Series have been designed to offer simple and efficient regulation features. The whole range of computer regulators is based on CIRCUTOR's FCP system (Fast Computerized Program), offering a set of unique performance features. Its main features are as follows:

• Shows by display: cos Ø, voltage, current, THD(I) and, besides, records in memory maximum values for voltage and current provides the "phase selection" function, that allows the user choosing the power line phase where the measuring current transformer (C.T.) has been placed in allows viewing in display the variation of cos Ø, line current and THD(I), when manually connecting or disconnecting capacitor steps.

• Indication by display or through relay output of following alarm conditions: Compensation failure,
• Over-compensation, Over-voltage, Over-current, C.T. not connected or open, Line current below measurable value.

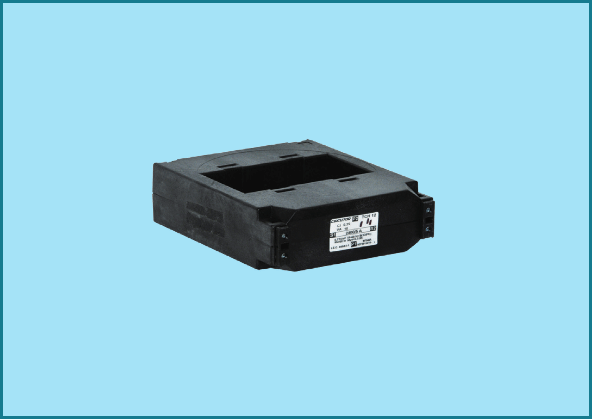

Current Measuring Tranformers are specifically designed for their use in those places with a limited free space for their installation such as close to circut-breakers and any position with a minimum seperation space between the bus bars,

• Easy Installation procedure
• Ideal for circut breaker output side
• High accuracy

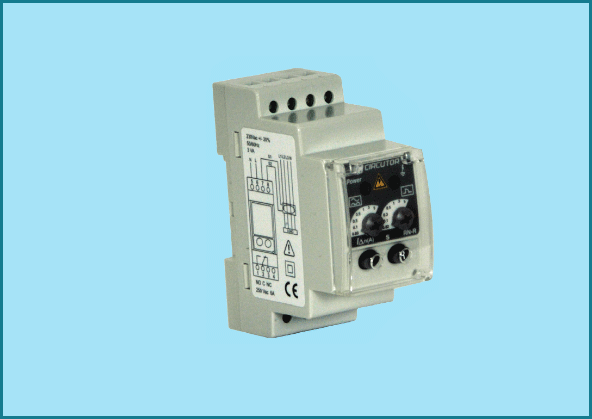

Display	Mechanism	IDn A	Delay(s)	Type	Code
LED	Electronic	0,03...5	0,02...5	RN-R	P12132

Electrical features

Auxiliary power supply	230 V a.c. (± 20%) 50 ... 60 Hz
Output contacts	250Va.c. 6 A
Operating temperature	-10°C/+50°C

Mechanical features

Mounting	DIN rail
Dimensions	2 modules
Weight	163 g
Protection grade Terminals	IP 20, Front side: IP 41
Standards	IEC 61008-1, IEC 755, IEC 255-5

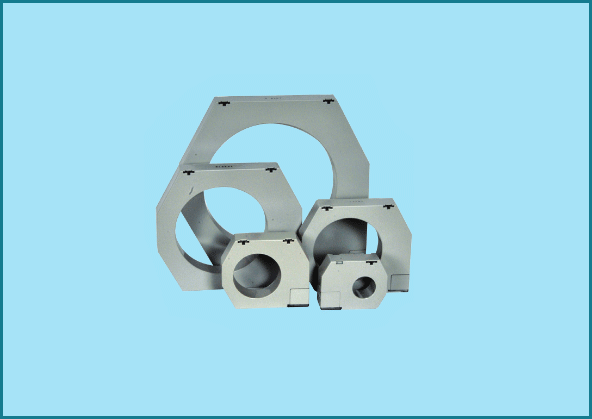

Weight	Useful diameter 0(mm)	Type	Code
148 g	35 0	WN-35	P10211
281 g	70 0	WN-70	P10212
433 g	105 0	WN-105	P10213
574 g	140 0	WN-140	P10214
1.201g	2100	WN-210	P10215
