Wohner, Germany & Powermat, India

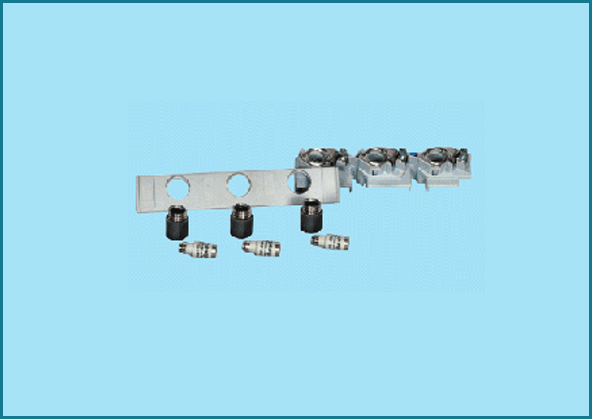

D02 Busbar Mounting Fuse Base Systems (Wohner Germany)

3-pole, 60mm system,combination base for 5 and 10mm thick busbars and double-t-section latching mechanism when sliding onto busbar opened box terminal 1.5-25mm2

Features

  • 400V/63A
  • 50 kA short-circuit withstand capability
  • Power dissipation at nominal current-5.9W
  • Silicon free and halogen free
  • W x H x D - 36x 200x43

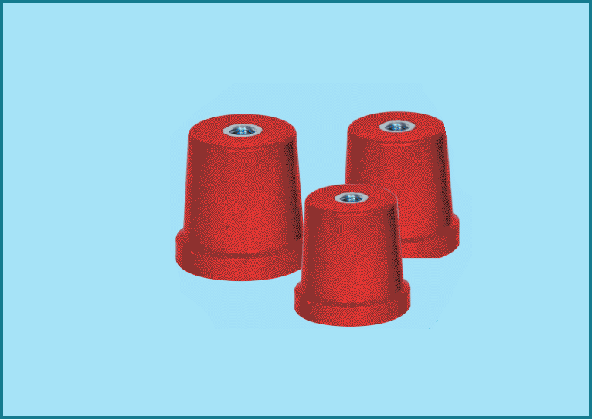

Busbar Insulators (Powermat)

Conical Insulator & Hexagonal Insulator

Features

  • All Dimensions are in MM
  • Insert: Brass/Steel (Zinc Passivated)
  • Material : DMC (Dough Moulding Compound) (UL 94 V-0)
Height mm Insert PowermatCodeNo Rt Diamm Rb Diamm Hb Diamm Nominal Voltage( AC/DC)
25 M6 C625 (M6) 19 25 10 400/500
30 M6 C630 (M6) 25 30 10 600/750
30 M8 C830 (M8) 25 30 10 600/750
40 M8 C840 (M8) 33 40 15 1000/1200
40 M10 C1040(M10) 33 40 15 1000/1200
50 M10 C1050(M10) 40 50 20 1200/1500
50 M12 C1250(M12) 40 50 20 1200/1500
60 M10 C1060(M10) 42 50 20 1500/1800
60 M12 C1260(M12) 42 50 20 1500/1800
70 M10 C1070(M10) 41 50 25 2000/2400
70 M12 C1270(M12) 41 50 25 2000/2400
