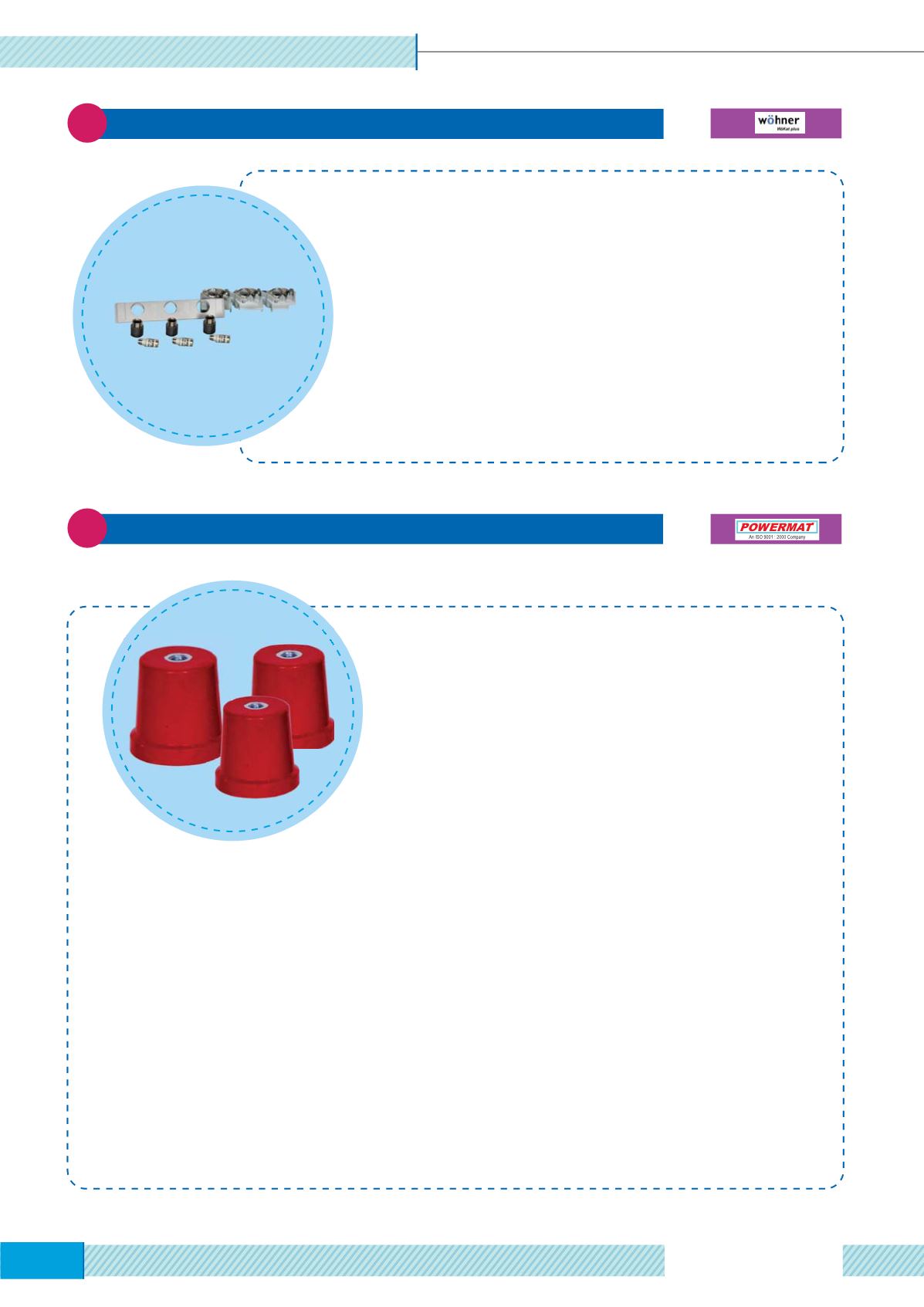

3-pole, 60mm
system,combination base for 5
and 10mm thick busbars and
double-t-section latching
mechanism when sliding onto
busbar opened box terminal
1.5-25mm 2
Features
• 400V/63A
• 50 kA short-circuit withstand
capability
• Power dissipation at nominal
current-5.9W
• Silicon free and halogen free
• W x H x D - 36 x 200 x 43
D02 Busbar Mounting Fuse Base Systems
P29
Height mm Insert PowermatCode No Rt Diamm Rb Diamm Hb Diamm Nominal Voltage(AC/DC)
25
M6
C625 (M6)
19
25
10
400/500
30
M6
C630 (M6)
25
30
10
600/750
30
M8
C830 (M8)
25
30
10
600/750
40
M8
C840 (M8)
33
40
15
1000/1200
40
M10 C1040 (M10)
33
40
15
1000/1200
50
M10 C1050 (M10 )
40
50
20
1200/1500
50
M12
C1250 (M12)
40
50
20
1200/1500
60
M10 C1060 (M10)
42
50
20
1500/1800
60
M12 C1260 (M12)
42
50
20
1500/1800
70
M10 C1070 (M10)
41
50
25
2000/2400
70
M12 C1270 (M12)
41
50
25
2000/2400
All Dimensions are in MM
Insert : Brass / Steel (Zinc Passivated)
Material : DMC (Dough Moulding Compound) (UL 94 V-0)
Busbar Insulators
P30
D02 Busbar Mounting Fuse Base Systems
Conical Insulator & Hexagonal Insulator
PRODUCT CATALOGUE
14
PROLIANCE SWITCHGEAR SOLUTIONS L L C
