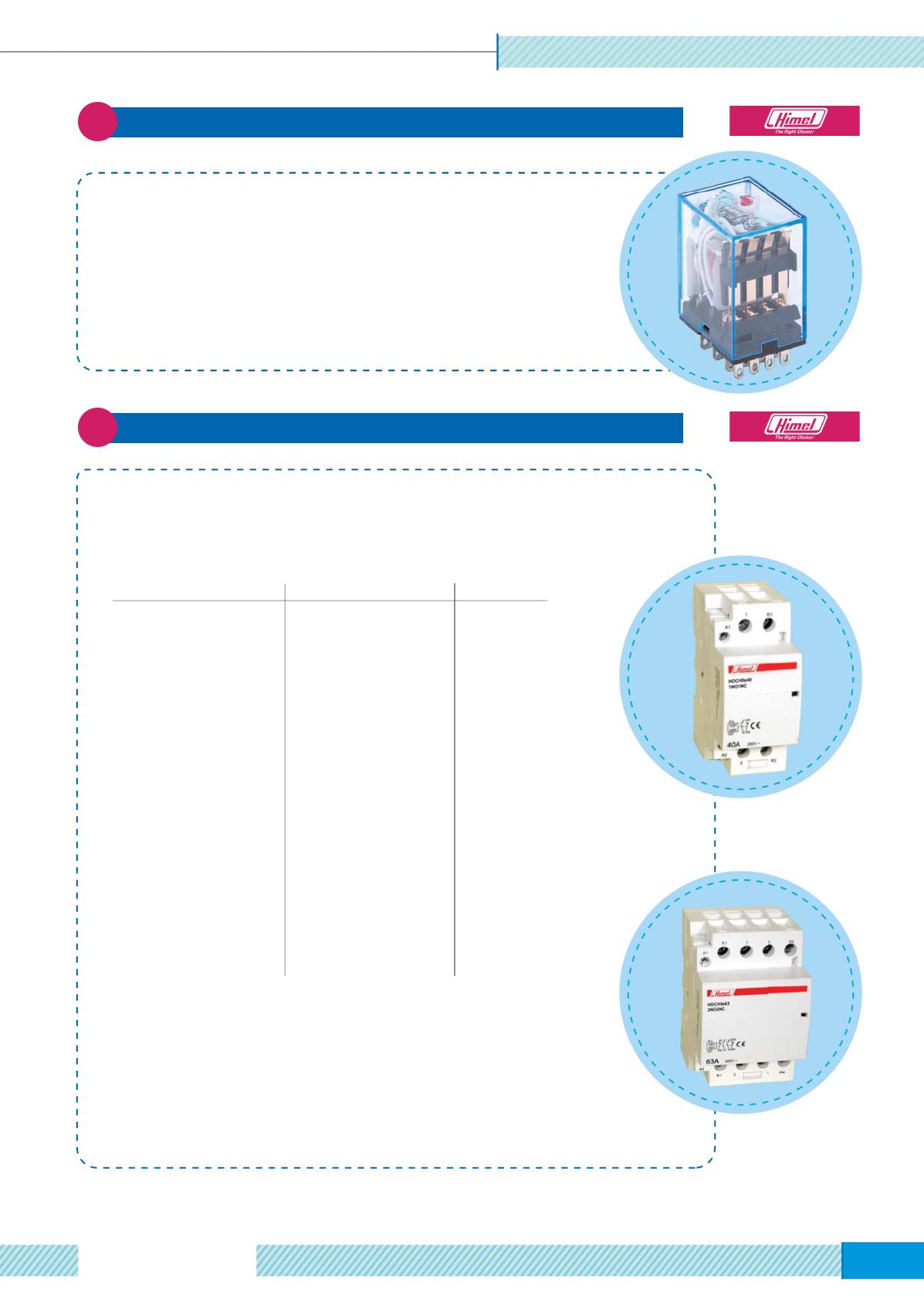

Miniature Relay
Used to implement the conversion of intermediate control signals
and low-power output, In the field of industrial control, used in
conjunction with contactors, relays, circuit breakers, etc.
Miniature Relay - HDZ
8
P
P16
HDCH8S Modular Contactor
P17
09
PRODUCT CATALOGUE
HDCH8S Modular Contactor
• Automatic control on Equipment in buildings
• Switch on or Switch off lighting or other equipments
Technical Information
2P
4P
Standard
IEC 61095
Ambient Temperature
-5C~40C
Rated Voltage Ue
230V AC
Rated Insulation Voltage Ui 500V AC
Operation Time
>30000 times
Coil Volatge (Us)
220/23V AC
Type
AC-7a
AC-7B
Rated Current (le)
20A/25A/32A/40A/63A
7A/8.5A/12/A/15A/25A
Rated Power
4kW/5.4kW/6.5kW/
1.2kW/1.5kW/1.9kW
8.4KW/13KW
2.4W/3.8kW
Operation Frequency
1200times/h
30time/h
Making & Breaking
Capacity
1.5le
8le
